1mm-150mm Welding Sch 10 Stainless Steel Pipe Construction Condenser
Place of Origin | China |
---|---|
Brand Name | Jiangsu Hengsai |
Certification | ce, RoHS, BIS, JIS, GS, ISO9001 |
Model Number | 200,300,400 series |
Minimum Order Quantity | 1 Tons |
Price | Negotiable |
Packaging Details | Waterproof and rust-proof seaworthy packaged goods according to customer requirements |
Delivery Time | within 7 working days |
Payment Terms | L/C, T/T, Western Union |
Supply Ability | 1000 tons/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | Stainless Steel Welded Pipe | Production Process | Cold Drawn,Cold Rolled,Bright Anneal Etc |
---|---|---|---|
Type | Welded | Standard | ASTM EN DIN GB ISO JIS |
Surface | BA/2B/NO.1/NO.3/NO.4 | Section Shape | Round, Square |
Tolerance | ±1% | Wall Thickness | 1mm-150mm(SCH10-XXS) |
High Light | 150mm welding sch 10 stainless steel pipe,1mm welding sch 10 stainless steel pipe,Round welding sch 10 stainless pipe |

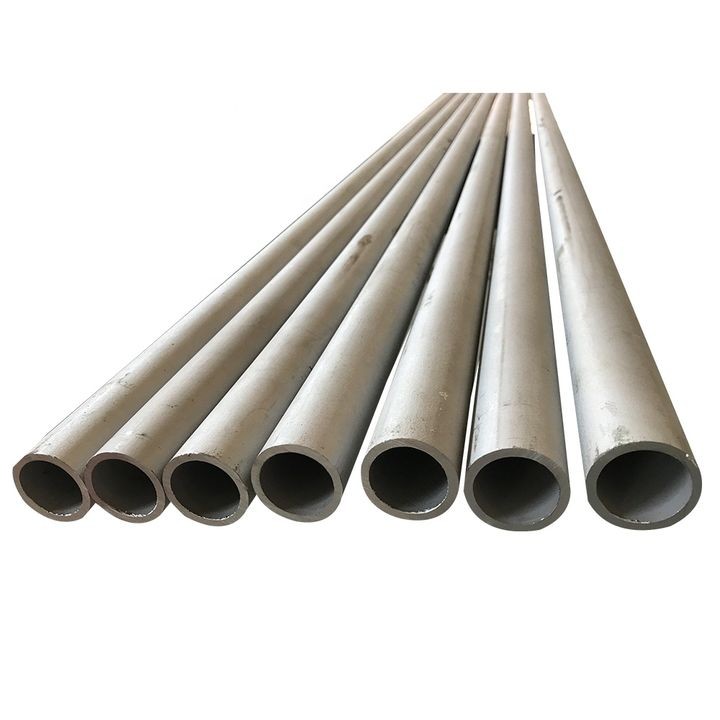

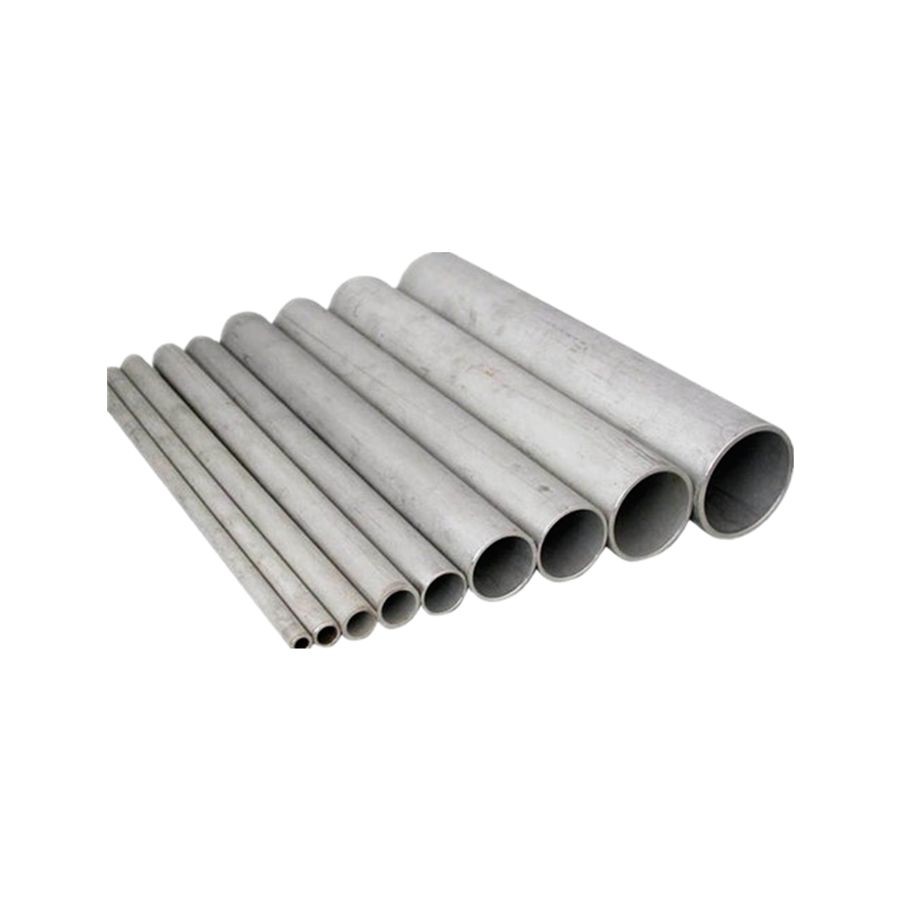

Construction Condenser Stainless Steel Welded Pipe 1mm-150mm(SCH10-XXS)
Welded stainless steel pipe is made by forming sheets of stainless steel into a cylinder and then welding the seam. This method of production ensures that the finished product has a clean, consistent appearance with no leaky seams.
Stainless steel welded pipe is available in a wide range of sizes and can be custom-made to meet your specific needs. We are one of the leading stainless steel welded pipe suppliers in China, with over 10 years of experience in the field. We offer competitive prices and quality products, backed by our commitment to customer satisfaction.
If you are looking for high-quality stainless steel welded pipe, please contact us today. We will be happy to discuss your specific requirements and provide you with a quotation.
Specification
Product Name
|
Stainless Steel Pipe
|
Standard
|
JIS, AISI, ASTM, GB, DIN, EN
|
Material
|
304,304L,309S,310S,316,316Ti,317,317L,321,347,347H,304N,316L, 316N,201, 202 Stainless Steel
|
Thickness
|
0.4-50 mm
|
MOQ
|
1Ton
|
Steel grade
|
200/300/400 series
|
Outer diameter
|
6mm-2500mm (3/8"-100")
|
Surface
|
BA/2B/NO.1/NO.3/NO.4
|
Package
|
Standard export seaworthy package,or as required.
|
Application
|
Decoration (Processed into raillings, handrails, doors and Windows),medical, industry, etc
|
Technique
|
Cold Rolled Hot Rolled
|
Grade | C | Si | Mu | P | S | Cr | Ni | MO | Ti | Other |
201 | ≤0.15 | ≤1.00 | 5.50-7.50 | ≤0.060 | ≤0.030 | 16.0-18.0 | 3.50-5.50 | - | - | |
301 | ≤0.15 | ≤1.00 | ≤2.00 | ≤0.065 | ≤0.030 | 16.0-18.0 | 6.0-8.0 | ≤2.00 | - | |
304 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 18.0-20.0 | 8.0-11.0 | - | - | |
304L | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.035 | ≤0.030 | 18.0-20.0 | 8.0-12.0 | - | - | |
304H | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.035 | ≤0.030 | 18.0-20.0 | 8.0-10.0 | - | - | |
316L | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 | - | |
316Ti | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.035 | ≤0.030 | 16.0-19.0 | 11.0-14.0 | 1.80-2.50 | ≥5×C% | |
317L | ≤0.030 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 18.0-20.0 | 11.0-15.0 | 3.0-4.0 | - | |
321 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 17.0-19.0 | 9.0-12.0 | - | ≥5×C% | |
321H | 0.04-0.10 | ≤0.75 | ≤2.00 | ≤0.045 | ≤0.030 | 17.0-19.0 | 9.0-12.0 | - | 4×C-0.70 | |
347H | 0.04-0.10 | ≤0.75 | ≤2.00 | ≤0.045 | ≤0.030 | 17.0-19.0 | 9.0-13.0 | - | - | |
309S | ≤0.08 | ≤0.75 | ≤2.00 | ≤0.045 | ≤0.030 | 22.0-24.0 | 12.0-15.0 | - | ||
310S | ≤0.08 | ≤1.50 | ≤2.00 | ≤0.045 | ≤0.030 | 24.0-26.0 | 19.0-22.0 | - | - | |
904L | ≤0.02 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.035 | ≤23 | ≤28 | - | - | |
2205 | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.030 | ≤0.015 | 21.0-23.0 | 4.5-6.5 | 2.90-3.50 | - | |
2507 | ≤0.03 | ≤0.80 | ≤1.20 | ≤0.035 | ≤0.020 | 24.0-26.0 | 6.0-8.0 | 3.0-5.0 | - |
About Us
We are a leading manufacturer and exporter of metal materials. lt is a modern comprehensive service enterprise, which is specialized in the production and processing of stainless steel, carbon steel, and alloy steel, non-ferrous metals, metal products, and other metal material fields, as well as in the import and export sales and industrial technical services we have the world first-class processing equipment, modernized physical and chemical testing center, opening flat, cutting, surface treatment, molding, sheet metal, welding. machining and 8 big processing platform. Moreover, we have the factory in shandong and jiangsu, facilitates each customer's comprehensive demand. Our company has successfully passed SO9001: China quality certification center quality certification since its establishment.Our products have been exported to many countries, such as the United States, Canada, Russia, Latvia, Ukraine, Brazil, Argentina,the united Arab emirates, Turkey, Saudi Arabia, Singapore, Indonesia,the Philippines, and enjoya high reputation!
FAQ:
Q1. What are your company's main products ?
A1: Our main products are Cold Rolled Stainless Steel Sheet, Hot Rolled Stainless Steel Sheet, Stainless Steel Coil Strip, Stainless Steel Bar Rod, etc.
Q2. How do you control quality ?
A2: Mill Test Certification is supplied with shipment, Third Party Inspection is available. and we also get ISO,SGS,Alibaba Verified.
Q3: What is the terms of packing?
A3: generally, we pack our goods in bundles or coils with rods or belts, we could also pack the goods as the customers requirement.
Q4:What is your delivery time?
A4: For stocks, we could transport the goods to loading port within 7 days after we received your deposit
For production period, it usually takes about 7 days-10 days after receiving the deposit.
Q5. What are the advantages of your company ?
A35: We have many professionals, technical personnel, more competitive prices and best after-dales service than other stainless steel companies.
Q6. How many coutries you already exported ?
A6: Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt, Turkey, Jordan etc.
Q7. Can you provide sample ?
A7: We can provide the samll samples in stock for free, as long as you contact us.
Customized samples will take about 5-7days.
