GB ISO JIS Stainless Pipe Welding Chemical Ocean Development

Place of Origin China
Brand Name Jiangsu Hengsai
Certification ce, RoHS, BIS, JIS, GS, ISO9001
Model Number 200,300,400 series
Minimum Order Quantity 1 Tons
Price Negotiable
Packaging Details Waterproof and rust-proof seaworthy packaged goods according to customer requirements
Delivery Time within 7 working days
Payment Terms L/C, T/T, Western Union
Supply Ability 1000 tons/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Stainless Steel Welded Pipe Production Process Cold Drawn,Cold Rolled,Bright Anneal Etc
Surface BA/2B/NO.1/NO.3/NO.4 Standard ASTM EN DIN GB ISO JIS
Application Heat Exahanger Tube, Chemical, Ocean Development Materials 200series, 300 Series, 400 Series, 600 Series
Tolerance ±1% Wall Thickness 1mm-150mm(SCH10-XXS)
High Light

JIS stainless pipe welding

,

ISO stainless pipe welding

,

GB stainless steel welded tube

Leave a Message
Product Description

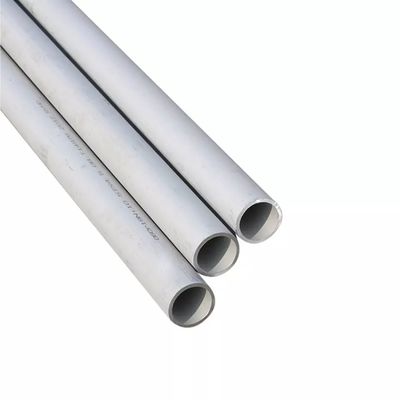

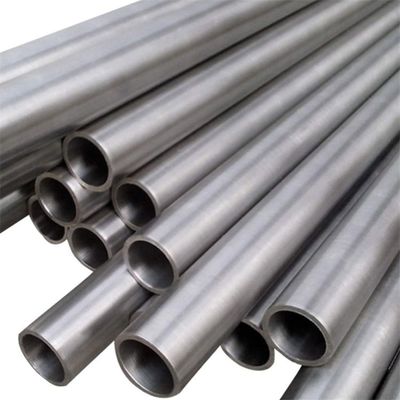

GB ISO JIS Stainless Steel Welded Pipe Chemical Ocean Development



The main disadvantage of welded pipes is that they have poorer corrosion resistance than seamless pipes. This is because the welds can act as sites for corrosion to start.

However, this disadvantage can be mitigated by using high-quality welding techniques and materials, as well as selecting the right grade of stainless steel for the application.



Specification

Product Name

Stainless Steel Welded Pipe

Production Process

Cold Drawn,Cold Rolled,Bright Anneal etc

Type

Welded

Standard

ASTM EN DIN GB ISO JIS

Tolerance

+/-0.05 ~+/0.02

Surface

Pickling,Bright;
No.1,2B,No.4,BA,8K
Satin,Brush,Hairline,Mirror,Polished
180 grits,320 grits,400 grits,600 grits,800 grits polished

Application

1).Heat exahanger tube for petrochemical,chemical and ocean development
2).Industrial furnace and heater tubes
3).for gas turbine and prochemical processing

4).Condenser tubes,sulfuric and phosphoric acids tubes,API tubing
5).Construction and ornament
6).Acid production,waste incineration,FGD,paper processing industrial etc

Materials

200 series: 201,202,202Cu,204Cu,
300series:301,303/Cu,304/L/H,304Cu,305,309/S,310/S,316/L/H/Ti,321/H,347/H,330,
400 series: 409/L,410,416/F,420/F,430,431,440C,441,444,446,
600 series: 13-8ph,15-5ph,17-4ph,17-7ph(630,631),660A/B/C/D,
Duplex: 2205(UNS S31803/S32205),2507(UNS S32750),UNS S32760,2304,

LDX2101.LDX2404,LDX4404,904L
Others: 153Ma,254SMo,253Ma,654SMo,F15,Invar36,1J22,N4,N6 etc
Alloy : Alloy 20/28/31;
Hastelloy: Hastelloy B / B-2/B-3/C22/C-4/S/ C276/C-2000/G-35/G-30/X/N;
Haynes: Haynes 230/556/188;
Inconel: Inconel 100/600/601/602CA/617/625713/718738/X-750,Carpenter 20;
Incoloy: Incoloy 800/
800H/800HT/825/925/926;
GH: GH2132,GH3030,GH3039,GH3128,GH4180,GH3044
Monel: Monel 400/K500
Nitronic: Nitronic 40/50/60;
Nimonic: Nimonic 75/80A/90 ;



Chemical Composition
Grade C Si Mu P S Cr Ni MO Ti Other
201 ≤0.15 ≤1.00 5.50-7.50 ≤0.060 ≤0.030 16.0-18.0 3.50-5.50 - -
301 ≤0.15 ≤1.00 ≤2.00 ≤0.065 ≤0.030 16.0-18.0 6.0-8.0 ≤2.00 -
304 ≤0.08 ≤1.00 ≤2.00 ≤0.045 ≤0.030 18.0-20.0 8.0-11.0 - -
304L ≤0.03 ≤1.00 ≤2.00 ≤0.035 ≤0.030 18.0-20.0 8.0-12.0 - -
304H ≤0.08 ≤1.00 ≤2.00 ≤0.035 ≤0.030 18.0-20.0 8.0-10.0 - -
316L ≤0.08 ≤1.00 ≤2.00 ≤0.045 ≤0.030 16.0-18.0 10.0-14.0 2.0-3.0 -
316Ti ≤0.08 ≤1.00 ≤2.00 ≤0.035 ≤0.030 16.0-19.0 11.0-14.0 1.80-2.50 ≥5×C%
317L ≤0.030 ≤1.00 ≤2.00 ≤0.045 ≤0.030 18.0-20.0 11.0-15.0 3.0-4.0 -
321 ≤0.08 ≤1.00 ≤2.00 ≤0.045 ≤0.030 17.0-19.0 9.0-12.0 - ≥5×C%
321H 0.04-0.10 ≤0.75 ≤2.00 ≤0.045 ≤0.030 17.0-19.0 9.0-12.0 - 4×C-0.70
347H 0.04-0.10 ≤0.75 ≤2.00 ≤0.045 ≤0.030 17.0-19.0 9.0-13.0 - -
309S ≤0.08 ≤0.75 ≤2.00 ≤0.045 ≤0.030 22.0-24.0 12.0-15.0 -
310S ≤0.08 ≤1.50 ≤2.00 ≤0.045 ≤0.030 24.0-26.0 19.0-22.0 - -
904L ≤0.02 ≤1.00 ≤2.00 ≤0.045 ≤0.035 ≤23 ≤28 - -
2205 ≤0.03 ≤1.00 ≤2.00 ≤0.030 ≤0.015 21.0-23.0 4.5-6.5 2.90-3.50 -
2507 ≤0.03 ≤0.80 ≤1.20 ≤0.035 ≤0.020 24.0-26.0 6.0-8.0 3.0-5.0 -



About Us

We are a leading manufacturer and exporter of metal materials. lt is a modern comprehensive service enterprise, which is specialized in the production and processing of stainless steel, carbon steel, and alloy steel, non-ferrous metals, metal products, and other metal material fields, as well as in the import and export sales and industrial technical services we have the world first-class processing equipment, modernized physical and chemical testing center, opening flat, cutting, surface treatment, molding, sheet metal, welding. machining and 8 big processing platform. Moreover, we have the factory in shandong and jiangsu, facilitates each customer's comprehensive demand. Our company has successfully passed SO9001: China quality certification center quality certification since its establishment.Our products have been exported to many countries, such as the United States, Canada, Russia, Latvia, Ukraine, Brazil, Argentina,the united Arab emirates, Turkey, Saudi Arabia, Singapore, Indonesia,the Philippines, and enjoya high reputation!



GB ISO JIS Stainless Pipe Welding Chemical Ocean Development 0

FAQ:

Q1. What are your company's main products ?

A1: Our main products are Cold Rolled Stainless Steel Sheet, Hot Rolled Stainless Steel Sheet, Stainless Steel Coil Strip, Stainless Steel Bar Rod, etc.



Q2. How do you control quality ?

A2: Mill Test Certification is supplied with shipment, Third Party Inspection is available. and we also get ISO,SGS,Alibaba Verified.



Q3: What is the terms of packing?

A3: generally, we pack our goods in bundles or coils with rods or belts, we could also pack the goods as the customers requirement.



Q4:What is your delivery time?

A4: For stocks, we could transport the goods to loading port within 7 days after we received your deposit

For production period, it usually takes about 7 days-10 days after receiving the deposit.



Q5. What are the advantages of your company ?

A35: We have many professionals, technical personnel, more competitive prices and best after-dales service than other stainless steel companies.



Q6. How many coutries you already exported ?

A6: Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt, Turkey, Jordan etc.



Q7. Can you provide sample ?

A7: We can provide the samll samples in stock for free, as long as you contact us.

Customized samples will take about 5-7days.
