400 Series 600 Series Stainless Steel Welded Tubes Bright Anneal
Place of Origin | China |
---|---|
Brand Name | Jiangsu Hengsai |
Certification | ce, RoHS, BIS, JIS, GS, ISO9001 |
Model Number | 200,300,400 series |
Minimum Order Quantity | 1 Tons |
Price | Negotiable |
Packaging Details | Waterproof and rust-proof seaworthy packaged goods according to customer requirements |
Delivery Time | within 7 working days |
Payment Terms | L/C, T/T, Western Union |
Supply Ability | 1000 tons/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | Stainless Steel Welded Pipe | Production Process | Cold Drawn,Cold Rolled,Bright Anneal Etc |
---|---|---|---|
Type | Welded | Standard | ASTM EN DIN GB ISO JIS |
Surface | BA/2B/NO.1/NO.3/NO.4 | Materials | 200series, 300 Series, 400 Series, 600 Series |
Tolerance | ±1% | Wall Thickness | 1mm-150mm(SCH10-XXS) |
High Light | 600 Series stainless steel welded tubes,400 Series stainless steel welded tubes,Bright stainless steel welded tube |

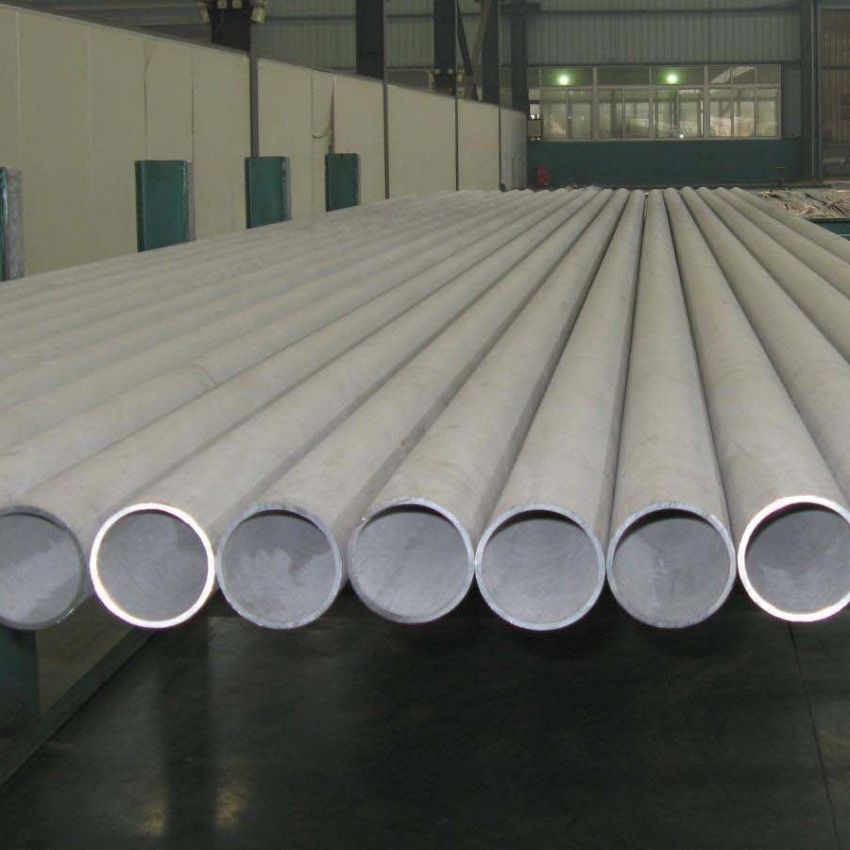

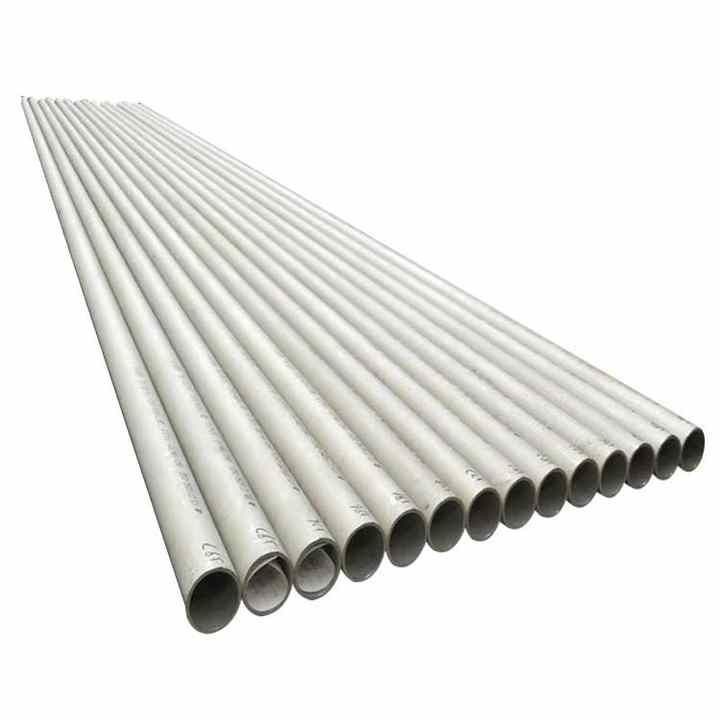

400 Series 600 Series Stainless Steel Welded Pipe Bright Anneal
Welded stainless steel pipes are made by cutting and rolling sheets of stainless steel into shape, before welding them together. This makes them less expensive to produce than seamless pipes, which are made by drawing a single piece of stainless steel through a die.
The main disadvantage of welded pipes is that they have poorer corrosion resistance than seamless pipes. This is because the welds can act as sites for corrosion to start. However, this disadvantage can be mitigated by using high-quality welding techniques and materials, as well as selecting the right grade of stainless steel for the application.
Specification
Product Name
|
Stainless Steel Pipe
|
Standard
|
JIS, AISI, ASTM, GB, DIN, EN
|
Material
|
304,304L,309S,310S,316,316Ti,317,317L,321,347,347H,304N,316L, 316N,201, 202 Stainless Steel
|
Thickness
|
0.4-50 mm
|
MOQ
|
1Ton
|
Steel grade
|
200/300/400 series
|
Outer diameter
|
6mm-2500mm (3/8"-100")
|
Surface
|
BA/2B/NO.1/NO.3/NO.4
|
Package
|
Standard export seaworthy package,or as required.
|
Application
|
Decoration (Processed into raillings, handrails, doors and Windows),medical, industry, etc
|
Technique
|
Cold Rolled Hot Rolled
|
Grade | C | Si | Mu | P | S | Cr | Ni | MO | Ti | Other |
201 | ≤0.15 | ≤1.00 | 5.50-7.50 | ≤0.060 | ≤0.030 | 16.0-18.0 | 3.50-5.50 | - | - | |
301 | ≤0.15 | ≤1.00 | ≤2.00 | ≤0.065 | ≤0.030 | 16.0-18.0 | 6.0-8.0 | ≤2.00 | - | |
304 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 18.0-20.0 | 8.0-11.0 | - | - | |
304L | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.035 | ≤0.030 | 18.0-20.0 | 8.0-12.0 | - | - | |
304H | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.035 | ≤0.030 | 18.0-20.0 | 8.0-10.0 | - | - | |
316L | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 | - | |
316Ti | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.035 | ≤0.030 | 16.0-19.0 | 11.0-14.0 | 1.80-2.50 | ≥5×C% | |
317L | ≤0.030 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 18.0-20.0 | 11.0-15.0 | 3.0-4.0 | - | |
321 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 17.0-19.0 | 9.0-12.0 | - | ≥5×C% | |
321H | 0.04-0.10 | ≤0.75 | ≤2.00 | ≤0.045 | ≤0.030 | 17.0-19.0 | 9.0-12.0 | - | 4×C-0.70 | |
347H | 0.04-0.10 | ≤0.75 | ≤2.00 | ≤0.045 | ≤0.030 | 17.0-19.0 | 9.0-13.0 | - | - | |
309S | ≤0.08 | ≤0.75 | ≤2.00 | ≤0.045 | ≤0.030 | 22.0-24.0 | 12.0-15.0 | - | ||
310S | ≤0.08 | ≤1.50 | ≤2.00 | ≤0.045 | ≤0.030 | 24.0-26.0 | 19.0-22.0 | - | - | |
904L | ≤0.02 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.035 | ≤23 | ≤28 | - | - | |
2205 | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.030 | ≤0.015 | 21.0-23.0 | 4.5-6.5 | 2.90-3.50 | - | |
2507 | ≤0.03 | ≤0.80 | ≤1.20 | ≤0.035 | ≤0.020 | 24.0-26.0 | 6.0-8.0 | 3.0-5.0 | - |
