SGC440 SGC490 SGC570 Prepainted Gi Sheet Anti Finger
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xStandard | ISO,JIS,AS EN,ASTM | Width | 600mm To 1500mm |
---|---|---|---|
Thickness | 0.125mm To 4.0mm | Product Name | PPGI |
Zinc Coating | 40g/m2 To 275g/m2 | Hardness | Softy , Half Hard And Hard Quality |
Coil Weight | 3 Tons To 8 Tons | Coil ID | 508mm Or 610mm |
High Light | SGC570 prepainted gi sheet,SGC490 prepainted gi sheet,SGC440 pre painted galvanized steel sheet |

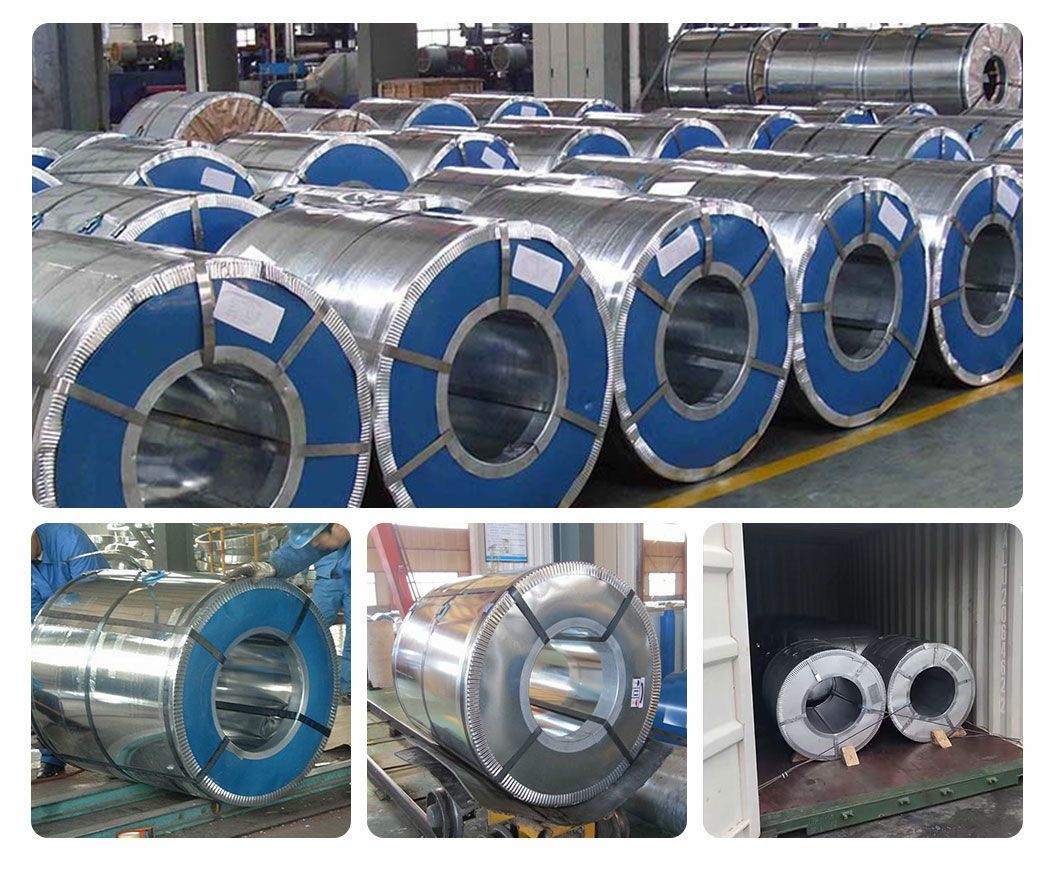

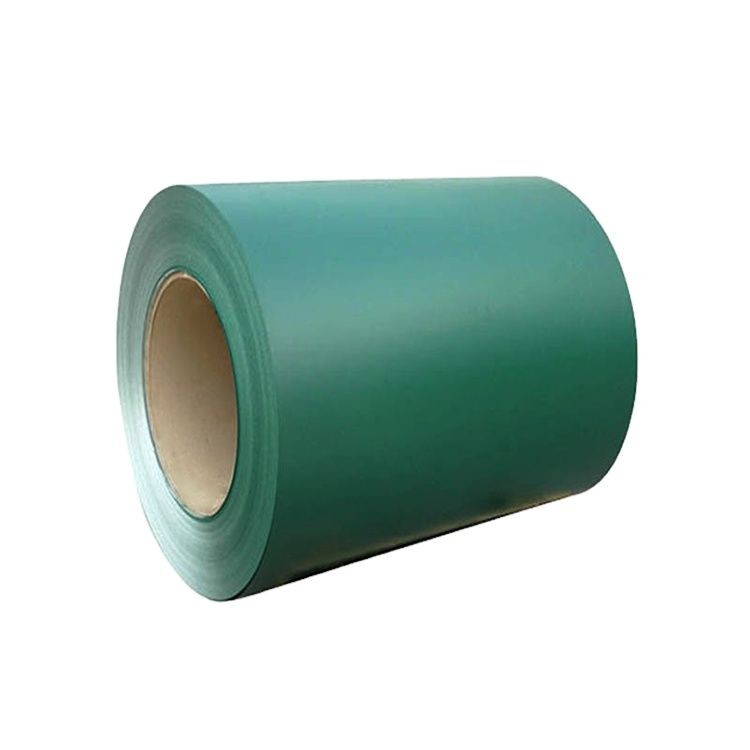

SGC440 SGC490 SGC570 Prepainted Steel Coil / Sheet Ant-Ifinger
As a leading ppgi coil manufacturer, we offer a wide range of products that are designed to meet the needs of our customers. We offer a variety of colors, sizes, and finishes to choose from, so you can find the perfect one for your project. Our coils are made from high quality materials and are designed to last. We also offer a satisfaction guarantee so you can be sure you're getting the best product possible.
As a leading PPGI supplier, we offer a wide range of high quality PPGI products in a variety of colors and sizes. Our PPGI products are available in both coils and sheets, and can be used for a variety of applications including roofs, walls, ceilings, and more. We also offer custom printing and cut-to-size services to meet your unique needs.
Specification
Prepainted Steel Coil / Sheet | |
Standard | ISO,JIS,AS EN,ASTM |
Grade | Q195 Q235 Q345 |
SGCC SGCH SGC340 SGC400 SGC440 SGC490 SGC570 | |
SGHC SGH340 SGH400 SGH440 SGH490 SGH540 | |
DX51D DX52D DX53D DX54D DX55D DX56D DX57D | |
S220GD S250GD S280GD S320GD S350GD S400GD S500GD S550GD | |
SS230 SS250 SS275 | |
Width | 600mm to 1500mm |
Thickness | 0.125mm to 4.0mm |
Zinc coating | 40g/m2 to 275g/m2 |
Substrate | Cold rolled Substrate / Hot rolled Substrate |
Color | Ral Color Systerm or as per buyer's color sample |
Surface treatment | Chromated and oiled, and ant-ifinger |
Hardness | Softy , half hard and hard quality |
Coil weight | 3 tons to 8 tons |
Coil ID | 508mm or 610mm |
Width(mm) | 610-1250mm (after corrugated), |
Raw material width 762mm to 665mm(after corrugated) | |
Raw material width 914mm to 800mm(after corrugated) | |
Raw material width 1000mm to 900mm(after corrugated) | |
Raw material width 1200mm to 1000mm(after corrugated) |
STEEL GRADE | CHEMICAL COMPOSITION % | MECHANIC PROPERTY | COATING | ||||||
C | Si | Mn | S | P | T.S | Y.S | E.L | ||
x103 | x103 | x102 | x103 | x103 | Mpa | Mpa | % | G/M² | |
JIS G3302 SGCC | 12 | 30 | 41 | 31 | 21 | 480 | 300 | 13 | Z60-150 |
JIS G3302 SGCH | 12 | 10 | 21 | 18 | 8 | 680 | 650 | 20 | Z60-150 |
ASTM A653 CS.B | 29 | 30 | 60 | 35 | 30 | 386 | 250-380 | 20 | Z60-275 |
DX51D+Z | 20 | 21 | 18 | 1.8 | 11 | 355 | 245 | 38 | Z60-275 |
G550 | 12 | 6 | 73 | 5 | 17 | 715 | 654 | 8 | Z60-275 |
About Us
We are a leading manufacturer and exporter of metal materials. lt is a modern comprehensive service enterprise, which is specialized in the production and processing of stainless steel, carbon steel, and alloy steel, non-ferrous metals, metal products, and other metal material fields, as well as in the import and export sales and industrial technical services we have the world first-class processing equipment, modernized physical and chemical testing center, opening flat, cutting, surface treatment, molding, sheet metal, welding. machining and 8 big processing platform.
Moreover, we have the factory in shandong and jiangsu, facilitates each customer's comprehensive demand. Our company has successfully passed SO9001: China quality certification center quality certification since its establishment.Our products have been exported to many countries, such as the United States, Canada, Russia, Latvia, Ukraine, Brazil, Argentina,the united Arab emirates, Turkey, Saudi Arabia, Singapore, Indonesia,the Philippines, and enjoya high reputation!
FAQ:
Q1. What are your company's main products ?
A1: Our main products are Cold Rolled Stainless Steel Sheet, Hot Rolled Stainless Steel Sheet, Stainless Steel Coil Strip, Stainless Steel Bar Rod, etc.
Q2. How do you control quality ?
A2: Mill Test Certification is supplied with shipment, Third Party Inspection is available. and we also get ISO,SGS.
Q3: What is the terms of packing?
A3: generally, we pack our goods in bundles or coils with rods or belts, we could also pack the goods as the customers requirement.
Q4:What is your delivery time?
A4: For stocks, we could transport the goods to loading port within 7 days after we received your deposit
For production period, it usually takes about 7 days-10 days after receiving the deposit.
Q5. What are the advantages of your company ?
A35: We have many professionals, technical personnel, more competitive prices and best after-sales service than other stainless steel companies.
Q6. How many coutries you already exported ?
A6: Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt, Turkey, Jordan etc.
Q7. Can you provide sample ?
A7: We can provide the samll samples in stock for free, as long as you contact us.
Customized samples will take about 5-7days.
