xProduct Name | Steel Wire | Standard | DIN 17223-1, EN 10270-1, JIS G 3521, IS 4454, A 227M, GB/T 4357, GB/T4358 |
---|---|---|---|
Wire Size | 0.20-12.50 Mm | Chinese Material | 45#, 47A, 47B, 60#, 62A, 62B, 65#, 65Mn, 67A, 67B, 70#, 72A, 72B, 75#, 77A, 77B, 80#, 82A, 82B, 85# |
UNS Grade No. | SAE1040, SAE1045,SAE1050, SAE1055, SAE1060, SAE1065, SAE1070, SAE1080,SAE1084. | British Standard Steel Name | C42D, C48D, C60D, C62D, C66D, C68D, C70D, C72D, C76D, C78D, C80D, C82D,C86D. |
Usages | Springs, Furniture, Door, Screen, Weaving, Spokes, Vehicle, Industrial | Diameter | 0.20-12.50mm |
Chinese Standard | GB.T 4357, GB/T 4358 | Alloy Or Not | Non-Alloy |
Tolerance | +/-0.01mm | ||
High Light | DIN 17223-1 Spring Steel Wire,12.50 mm Spring Steel Wire,0.20mm spring metal wire |

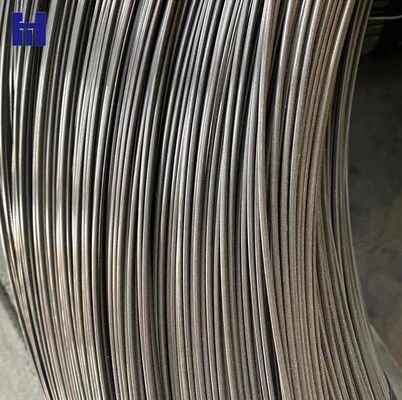

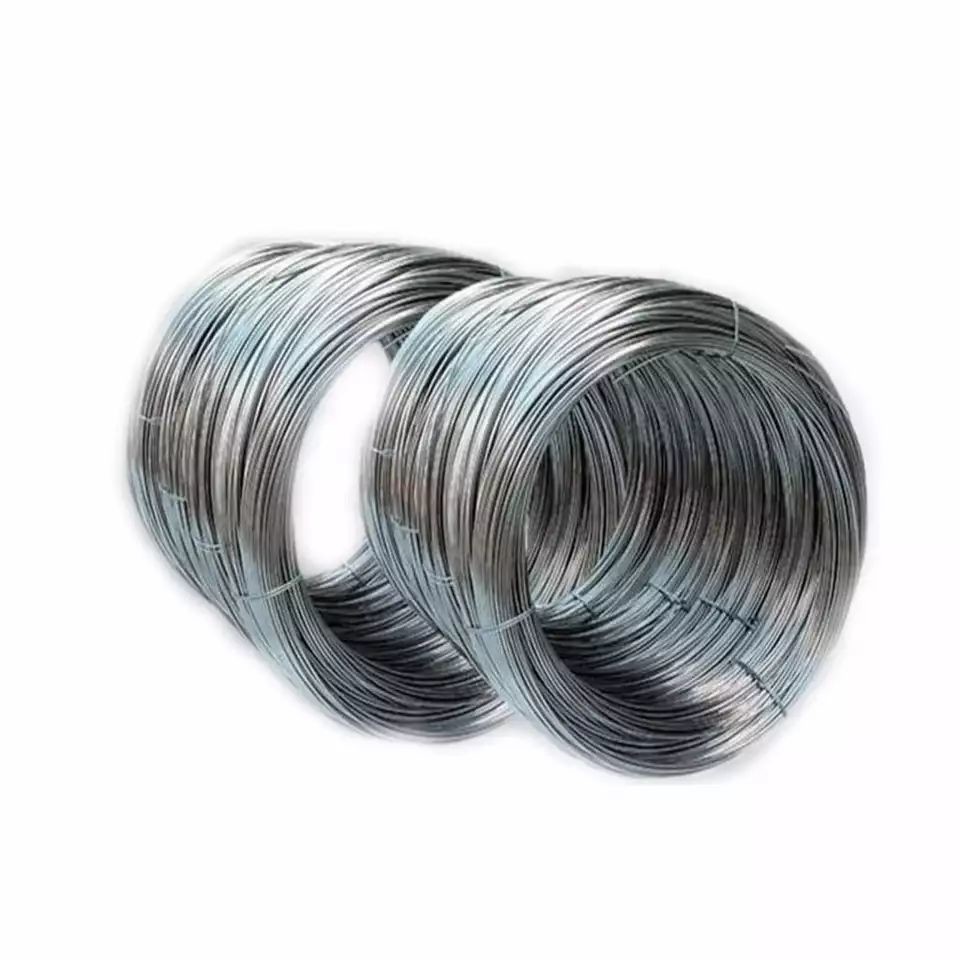

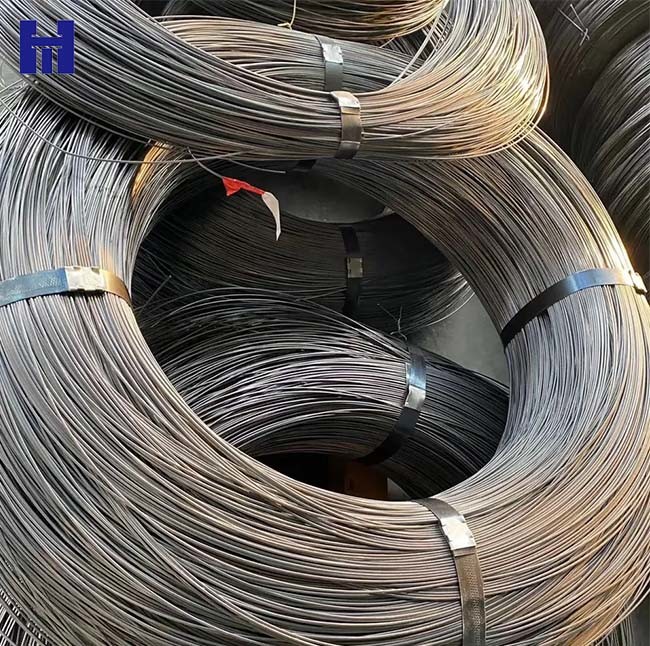

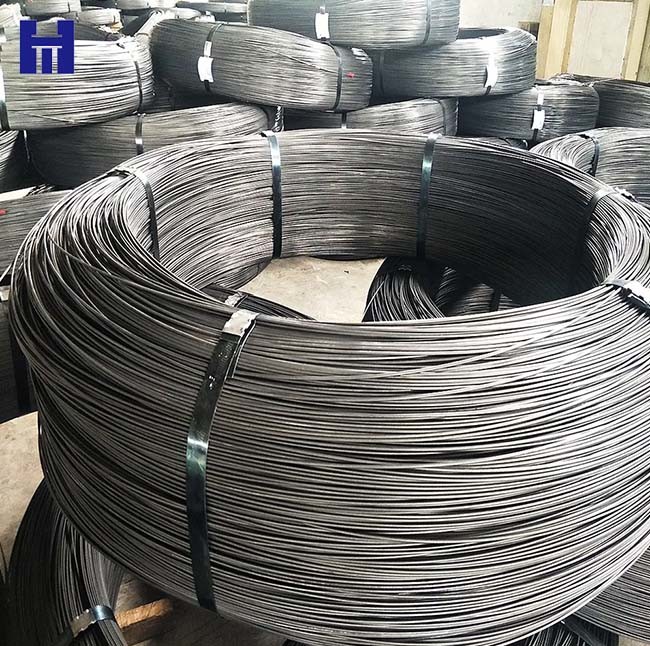

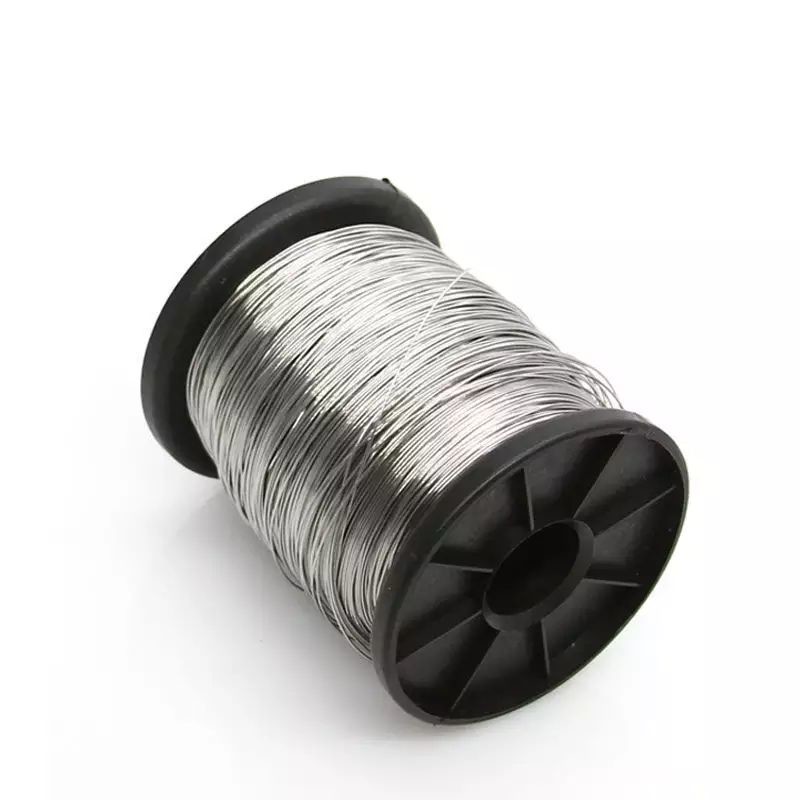

DIN 17223-1 EN 10270-1 Metal Wire Roll High Carbon Spring Steel Wire 0.20-12.50 mm
The hot dipped steel core wire galvanized steel wire is widely used in construction, ACSR, armoring cable, handicrafts, Cotton packaging, screen preparation, production of galvanized hook mesh, wall network, highway protective fences, product packaging and daily civilian and other fields.
- Mechanical Equipment, Engineering Vehicle,Motor Vehicle,
- Motorcycle, Accumulator Car,Bicycle, Fitness Equipment,
- Elevator, Steel Wire Screen, Mattress And Sofa, Umbrella Frame, Electronic Products,ect.
Spring Usage
- Compression spring,torsion spring,extension spring,
- agricultural machines,die springs,strip&wire forming springs
Product Name
|
1.5mm wire Metal Wire Roll High Carbon Spring Steel Wire
|
Standard
|
DIN 17223-1, EN 10270-1, JIS G 3521, IS 4454, A 227M, GB/T 4357, GB/T4358
|
Wire Size:
|
0.20-12.50 mm
|
Chinese Material
|
45#, 47A, 47B, 60#, 62A, 62B, 65#, 65Mn, 67A, 67B, 70#, 72A, 72B, 75#, 77A, 77B, 80#, 82A, 82B, 85#
|
Japanese Industrial Standard Steel Grade
|
SWRH 42A, SWRH 42B, SWRH 47A, SWRH 47B, SWRH 52A, SWRH 52B, SWRH 57A,
SWRH 57B, SWRH 62A, SWRH 62B, SWRH 67A , SWRH 67B, SWRH 72A, SWRH 72B,
SWRH 77A, SWRH 77B, SWRH82A, SWRH82B
|
UNS Grade No.:
|
SAE1040, SAE1045,SAE1050, SAE1055, SAE1060, SAE1065, SAE1070, SAE1080,SAE1084.
|
British Standard Steel Name:
|
C42D, C48D, C60D, C62D, C66D, C68D, C70D, C72D, C76D, C78D, C80D, C82D,C86D.
|
Springs Usage
|
Helical Springs(tension, compression and torsion springs), spring washers and other wire springs.
Garage door spring wire, Mattress steel wire, bed steel wire, sofa steel wire, Springs for mattress,
mattress frame wires, Pocket coil mattress wire, etc.
|
Other Usages
|
Springs, Furniture, Door, Screen, Weaving, Spokes, Vehicle, Industrial
|
Other Products Name
|
High Carbon Steel Wire, Spring Steel Wire, Coil Spring Steel Wire,.Spoke Steel Wire,
Nipple Steel Wire, Nipple Steel Wire, Black Steel Wire, Hard drawn steel wire,
Phosphated steel wire, Ungalanized Steel Wire, Medium Carbon Steel Wire, Low Carbon Steel Wire, etc.
|
Round steel wire for springs Patented cold drawn,carbon steel wire for springs Technical delivery conditions
|
DIN 17223
|
||||||
Wire grade
|
Nominal diameter
mm |
Chemical composition (cast analysis)% by mass
|
|
||||
C
|
Si max
|
Mn
|
P
|
S
|
Cu max
|
||
A
|
1.00 to 10.00
|
0.40 to 0.85
|
0.35
|
0.30 to 1.00
|
0.04
|
0.040
|
0.20
|
B
|
0.30 to 6.00
6.30 to 14.00 15.00 to 20.00 |
0.55 to 0.85
0.40 to 0.85 0.40 to 0.85 |
0.35
0.35 0.35 |
0.30 to 1.00
0.30 to 1.00 0.30 to 1.50 |
0.040
0.040 0.040 |
0.040
0.040 0.040 |
0.20
0.20 0.20 |
C
|
2.00 to 6.00
6.30 to 20.00 |
0.70 to 1.00
0.50 to 1.00 |
0.35
0.35 |
0.30 to 1.50
0.30 to 1.50 |
0.030
0.030 |
0.030
0.030 |
0.12
0.12 |
D
|
0.07 to 6.00
6.30 to 20.00 |
0.70 to 1.00
0.50 to 1.00 |
0.35
0.35 |
0.30 to 1.50
0.30 to 1.50 |
0.030
0.030 |
0.030
0.030 |
0.12
0.12 |
Steel wire for mechanical springs-patented cold drawn unalloyed spring steel wire
|
EN 10270-1:2001
|
|
Tensile strength
|
Static
|
Dynamic
|
Low Tensile strength
Medium Tensile strength High Tensile strength |
SL
SM SH |
-
DM DH |
JIS G 3521 Hard Drawn Steel Wire
|
|||
Level
|
|
Diameter
|
Note
|
A
|
SW-A
|
From 0.08mm to 10.0mm
|
-
|
B
|
SW-B
|
From 0.08mm to 13.0mm
|
Mainly for static load springs
|
C
|
SW-C
|
Galvanized steel wire ACSR | ||||
Diameter mm | Tensile Strebgth No Less Than (MPA) |
Strength For 1% Elongation No Less Than |
LD=250mm Elongation Noless Than% |
Zinc Coating Mass (g/m2) |
1.44-1.60 | 1450 | 1310 | 3.0 | 200 |
1.60-1.90 | 1450 | 1310 | 3.0 | 210 |
1.90-2.30 | 1450 | 1310 | 3.0 | 220 |
2.30-2.70 | 1410 | 1280 | 3.5 | 230 |
2.70-3.10 | 1410 | 1280 | 3.5 | 240 |
3.10.3.50 | 1410 | 1240 | 4.0 | 260 |
3.50-3.90 | 1380 | 1170 | 4.0 | 270 |
3.90-4.50 | 1380 | 1170 | 4.0 | 275 |
4.50-4.80 | 1380 | 1170 | 4.0 | 300 |
